Video Equipment and LED Screen Rental and Support Services
Large Screen Video (LSV) has just what you need to make your next event remarkable. For nearly 30 years, we have offered video equipment and LED screen rental services, focusing on creating big, bright, beautiful images for a wide range of client needs. Our mission is to find the right technology for each setting and event, and to use technology and ingenuity to make each client’s vision an impressive reality.
When you make a great impression, we make one too. Our team is here to assist you with:
Project Management
Support Services
Design
Transport
Power
Rigging
Setup
Operations
Safety
Maintenance
Dismantling
Loadout
LSV brings decades of video presentation experience to every event. Our portable equipment and technical crews travel to any location for any type of production. Installations are specifically designed for temporary, permanent, portable, and touring displays for:
- Stadiums, fairs, and sporting events
- Convention halls and trade shows
- Live concerts, theaters, and television events
- Award ceremonies and special events
- Corporate, marketing, and advertising events
- Billboard and banner signage
Specialized for Outdoor Concerts and Events
“We love the challenges of unique stage designs and engineering unusual support rigs and screen configurations for LSV clients. There’s a magic that happens when a simple drawing becomes a killer show set.”
– Cameron Brown
LED technology has made it possible to use full-field video outdoors and in full sunlight. Outdoor concerts and events have been at the core of our business. But beyond concerts, LED screens are a centerpiece of every kind of outdoor event today. Air shows, corporate parties, sporting events, sales shows, fairs, and festivals are among the many outdoor happenings made more exciting by LED screens.
Equipment

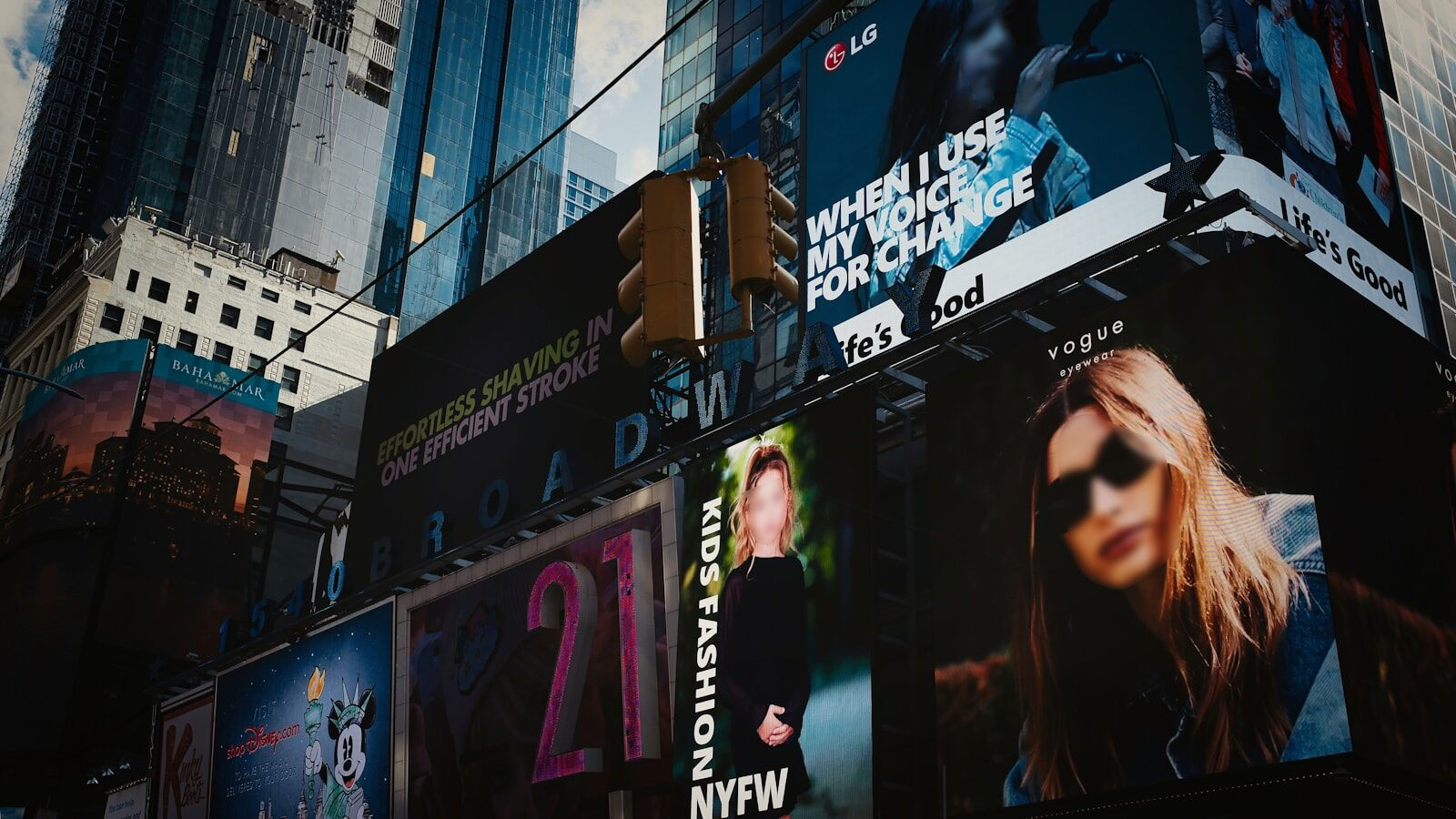

Big Beautiful Pictures Make Great Impressions
Bright enough to be viewed in direct sunlight and lighter, more stable, and with modest power requirements, our LED screens run cool to the touch while operating. Once known as “Jumbotrons,” today’s LED screens for video playback or image magnification are in a whole new league of technology.
Resolution Simulator
Simulation gives a sense of the resolutions of various LED screens and scenic elements. The dot grid depicts screens photographed with a 35 mm camera sporting a “normal” 50 mm lens from two meters away. For ease of comparison, the dots are held at a constant size, equivalent to 3 mm individual LEDs. In reality, the individual LEDs in different products are usually tripled and vary considerably in size.

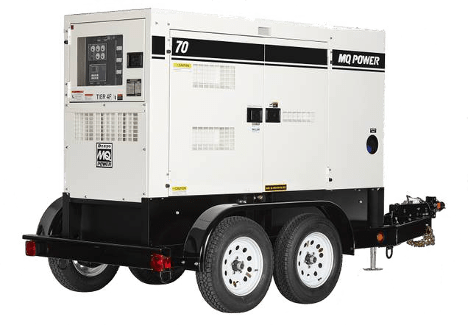

Generator
Specs:
Mobile Generator
Make: MultiQuip (Whisper Watt)
California Compliant
Power Output: 70kw
Fuel Type: Diesel 100gal Tank
LOA: 169.4”
Width: 72.5”
Height: 98”

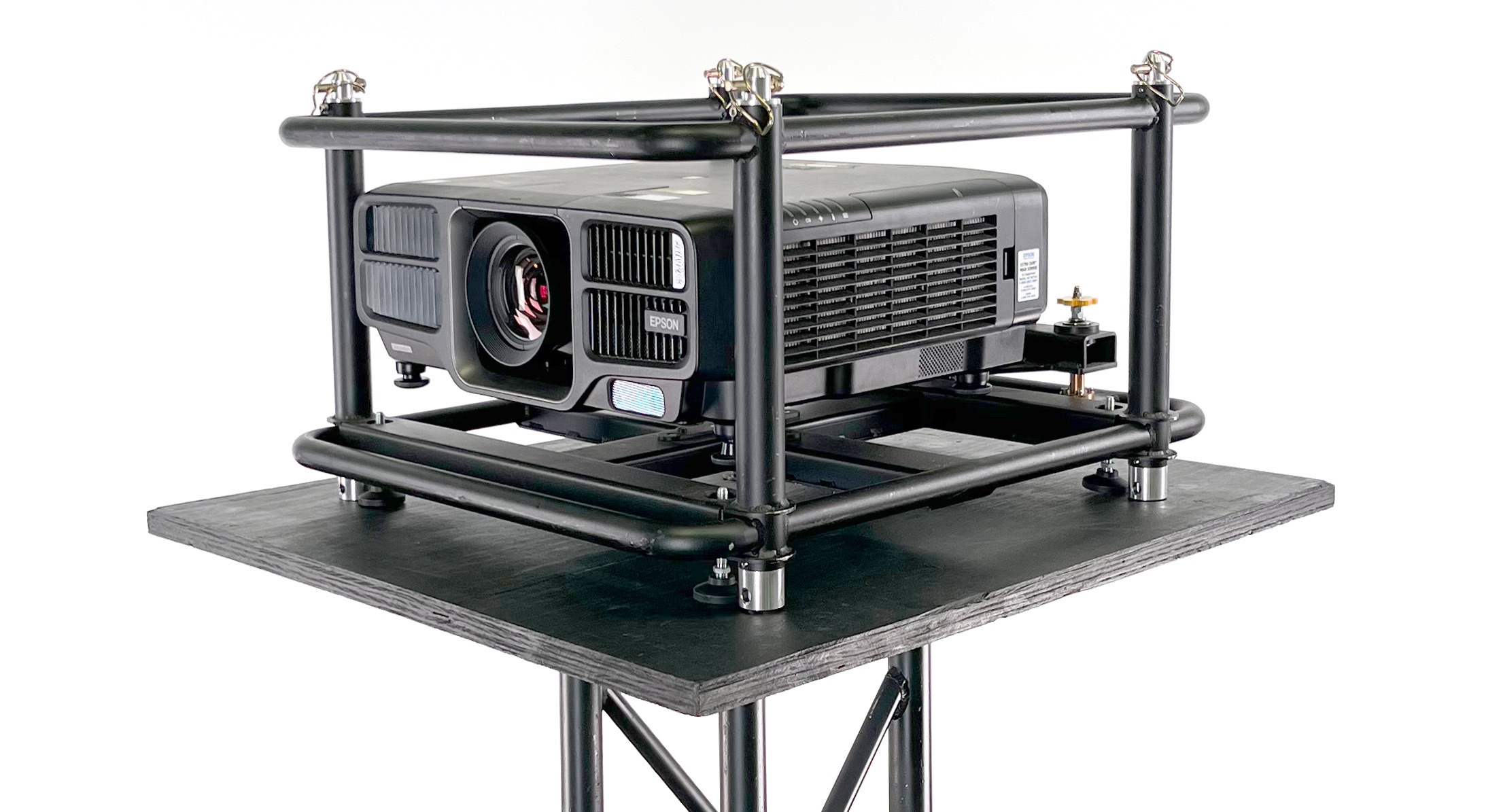

Projection
We have projections in all sizes, with no limits on throw distance. We provide front- and rear-projection, along with projection mapping. Indoor and outdoor.
Indoor Display Poster LED 2.5 mm
The 2.5 mm screen is sophisticated yet attention-grabbing for any audience. It’s the thinnest of panels at just 40 mm. It is great for venues with limited space, but big on impact.
Weighing only 77 lbs, these displays can be hung from the ceiling, mounted on a wall, or placed on a free-standing easel. Line them up together to create a wall or stand them individually for a sleek digital poster. Displays have 140° of visibility in all directions. Your video or graphics signal can be connected via cloud or Wi-Fi.
Features:
- Brightness: 1,000 Cd⁄m² (nits)
- Panel dimensions: 614 mm × 1,982 mm
- Panel thickness: 40 mm
- Panel weight: 30 kgs
- Pixel pitch: 2.571 mm
- Refresh rate: 2,520 Hz
- Viewing angles: ±70°
Indoor Blackchip High-Res LED 2.5 mm
Tiny pixel size and extreme uniformity of brightness and color in this amazing LED product produce the clearest, most natural images imaginable, even to the closest observer. The superior stability of this seamless screen gives vivid images that rival reality. Fast, precise locking modules for ease of installation feature a special panel-protection design.
Features:
- Brightness: 1,200 Cd⁄m² (nits)
- Gray levels: 14 bits
- Panel dimensions: 480 mm × 480 mm
- Panel weight: 9 kgs
- Power consumption: 60-150 watts
- Refresh rate: Greater than 1,920 Hz
- Viewing angles: 140° × 120°
Indoor Blackchip High-Res LED 2.8 mm
This high-resolution LED display brings the best in modular design and installation convenience. Fast-snapping lock systems enable a seamless display, while automatic color calibration and a high refresh rate precisely control brightness for crisp images. All the advances in LED screen development are in this tight pixel format. The 2.8 mm display also supports 3D.
Features:
- Brightness: 900 Cd⁄m² (nits)
- Gray levels: 14 bits
- LED configuration: SMD 1R 1G 1B
- Panel dimensions: 500 mm × 500 mm
- Panel weight: 8.5 kgs
- Pixel pitch: 2.8 mm
- Power consumption: 70-180 watts
- Refresh rate: 2,480 Hz
- Viewing angles: 140° × 120°
Indoor Blackchip High-Res LED 3.75 mm
Super-thin and lightweight panels allow for rapid installation and easy maintenance. A tight pixel pitch offers sharp, clear images even at close range. Each panel is small enough to allow for extremely flexible screen sizing.
Features:
- Panel dimensions: 480 mm × 480 mm
- Panel thickness: 73 mm
- Panel weight: 7.5 kgs
- Pixel count: 128 × 128
- Brightness: 2,000 Cd⁄m² (nits) with 281 trillion colors
- Gray levels: 65,536
- Refresh rate: Greater than 2,500 Hz, suitable for higher display capacity
- Optimal viewing distance: 4 to 200 meters
- Viewing angles: 140° × 140°
Indoor/Outdoor LSV Curvable LED 3.91 mm
High-resolution 3.91 mm modules are brilliantly colorful, have wide viewing angles, and offer seamless connections. This ultra-thin, lightweight LED is curvable along beveled edges. With its sleek, modular design, this screen offers both concave and convex options and a very high refresh rate, making it an excellent choice for trade show or exhibition use.
Features:
- Brightness: 5,000 Cd⁄m² (nits)
- Gray levels: 14 bits
- Panel dimensions: 500mm × 500mm
- Refresh rate: 3,840 Hz
- Degree of curvature: ±3°
Indoor/Outdoor Toshiba 10 mm
Equally suited for outdoor or indoor use, this 10 mm format is as flexible as it is functional—offering the advantages of high brightness and low power consumption in a hard-working, reliable, and versatile screen. It delivers brilliant, high-resolution images.
Features:
- Panel dimensions: 640 mm
- Panel weight: 35 kgs (77.16 lbs)
- Pixel dimensions: 64 × 48
- Brightness: 5,000 Cd⁄m² (nits)
- Cluster configuration, high bandwidth gives greater uniformity than SMD
- “One Touch” fast assembly system
- Power consumption: 260 watts max
- Power supply: 120-240 volts AC, single phase
- Color palette: Over one billion colors
- Viewing angle: 120°
- Unrivaled reliability
Indoor/Outdoor Toshiba 13 mm
Versatility for all kinds of applications is the building block of Toshiba’s full-color displays. Brilliant images and vivid colors deliver maximum impact, and this system’s indoor and outdoor capability makes it a workhorse for any show situation.
Features:
- 13 mm virtual resolution indoor or outdoor display for modular or fixed installation
- Panel dimensions: 1900 mm × 1200 mm (5.25′ × 3.94′)
- Panel weight: 90 kgs (198.41 lbs)
- Pixel dimensions: 64 × 48
- Brightness: 5,000 Cd⁄m² (nits)
- Color palette: Over one billion colors
- Viewing angle: Up to 160°
- Lightweight, easily configurable
- Power consumption: 1200 watts max
Indoor/Outdoor/Scenic F-LED Ultra Lightweight 11 mm
This flexible configuration, high-quality display boasts easy installation and is super lightweight. Excellent for full-field video or special effects, the F-LED Ultra Lightweight can “open” the module structure to achieve 36% transparency in stage set or decor screen designs. This LED screen can even be used outdoors in protected locations or stable weather conditions.
Features:
- 5° horizontal panel bend break for convex or concave designs
- Panel dimensions: 450 mm × 450 mm
- Panel thickness: 60 mm
- Pixel pitch: 11.25 mm (40 × 40 dots)
- LED configuration: 3 in 1 SMD
- Brightness: Max 6,400 and white balanced 6,500 Cd⁄m² (nits)
- Viewing angles: 145° × 145°
- Frame weight: 3.5 kgs
- Power supply: 110 to 220~240 volts AC, 50/60 Hz
- Power supply weight: 1.5 kgs (one unit powers two frames)
- Data connection: BNC cable
Indoor/Outdoor/Scenic Soft Curtain LED 18 mm
Soft drapery with LED nodes affixed provides decorative flexibility as a stage backdrop. Soft, thin, and flexible, this velvet LED drapery is versatile enough to create circles, columns, ellipses, triangles, and all sorts of irregular shapes, and to carry your high-definition video for impressive and creative uses. Excellent and cost-effective for a theatrical display or backdrop, or any longer-running exhibition or event. An LED curtain can display graphics, images, flashes, or text.
Features:
- Pixel pitch: 18.25 mm
- Brightness: 3,080 Cd⁄m² (nits)
- Gray levels: 16 bits
- Inputs: DVI, VGA, HDMI
- LED configuration: 5050 SMD LED
- Optimal viewing distance: 9 to 120 meters
- Panel weight: 9 kgs per m²
- Power consumption: 35-78 watts max
- Refresh rate: 1,000 Hz
- Viewing angles: 120° × 120°
Indoor/Scenic LED Video Spheres 10 mm
Move over mirror balls, here’s a new center of attention. Full 360° video and a most unique LED display for creative applications and added wow factor.
Features:
- 1-meter diameter sphere in full video
- Flown or ground supported
- Frame weight: 170 lbs
- Pixel pitch: 10 mm
- Viewing angle: 360°
Contact LSV today to inquire about LED screen rental and installation services.
